Republic of Gamers (ROG), part of the ASUS family, is dedicated to creating innovative hardcore gaming hardware for gamers. ROG is committed to providing the absolute best performance and quality from its complete line of products. ROG is for those keen on the finest gaming hardware and software, it enables the ultimate computing experience for gamers and enthusiasts worldwide. All the while incorporating a stylish gamer-focused design merging the excitement of gaming with a unique premium style
ROG STRIX B650-F GAMING WIFI

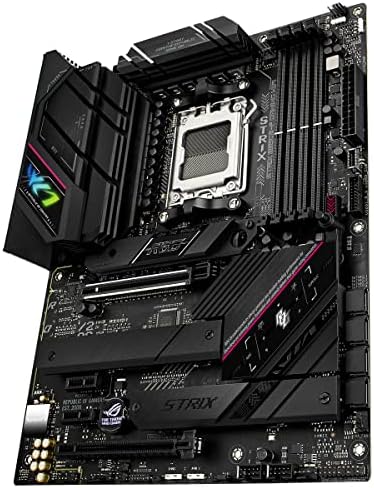

ASUS ROG Strix B650E-F Gaming WiFi AMD Ryzen AM5 ATX motherboard, 12 + 2 power stages, DDR5, three M.2 slots, PCIe 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2×2 Type-C port, and Aura Sync RGB
AMD Socket AM5: Ready for AMD Ryzen 7000 Series desktop processors Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads Next-Gen M.2 Support: One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance Advanced Connectivity: One USB 3.2 Gen 2×2 Type-C and ten additional rear USB ports, USB 3.2 Gen 2 Type-C front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 5.0 x16 SafeSlot High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth 5.2, and Intel 2.5G Ethernet with ASUS LANGuard Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
PCIE 5.0
Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.
POWER DESIGN
POWER ARCHITECTURE
12 + 2 power stages, rated to 80A each deliver ample current in order to drive AMD Ryzen 7000 Series processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
EIGHT-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
MEMORY
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix B650E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
COOLING
VRM HEATSINKS
Two VRM heatsinks, with one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen 7000 Series processors.
HIGH-CONDUCTIVITY THERMAL PADS High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
NETWORKING
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
2.5G ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
AUDIO – SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
ID DESIGN
An overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
COMPATIBILITY
The ROG Strix B650E-F bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
INTELLIGENT CONTROL
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
