Price: £64.52
Last Updated: Nov 15, 2024 13:23:20 UTC
Product Description
H81 M ATX motherboard with support for 4th generation Intel processors for Core i3 i5 i7, for Xeon E3 V3 series, for Celeron G series and for Pentium G series (e.g. for Core i7 4790K i5 4690K i3 4160T, for Xeon E3 1280 v3, for Pentium G3260T, for Celeron G1830, etc).
Gaming motherboard
Gaming motherboard, two 240 pin DDR3 SDRAM desktop memory slots, unbuffered, supports effective frequency 1066, 1333, 1600MHz, maximum capacity 16GB. 8 Layer PCB sturdy material, not easy to bend, to ensure stable operation of each circuit.Computer motherboard for the updated version of the H81 M.2 motherboard, has high Speed M.2 hard drive interface, with its own jumper cable, support for dual mode NVME with NGFF, you can freely choose the high and low, high speed PCIE hard drive circuit and SATA2.0, 3.0 channel.Desktop computer motherboard, offers a variety of I, O interfaces, including 4 USB 2.0 ports, 2 USB 3.0 ports, 1 VGA port, 1 HD Multimedia Interface compatible interface, 1 RJ45 port, 1 3 in 1 Interface Sound Interface (Line In, Line Out, Microphone).
Gaming motherboard
Product Material: PCB Model: H81 Battery: CR2032 (Built-in), Capacity: 240mAh CPU: LGA1150 support of 4th generation (for HASWELL), 5th generation (e.g. for Core I3 I5 I7, for Xeon E3 V3, for Celeron G series) Storage: 2 x 240 pin DDR3 SDRAM slots; Memory up to 16GB; Supports dual channel DDR3 1066, 1333, 1600MHz Storage: 2 x SATA 2.0 (3GB/s) ports, 1 x SATA 3.0 (6GB/s) port Expansion slots: 1x PCI Express x16 slot; 1x PCI Express x1 slot; 1x M.2 NVMe, NGFF slot Architecture: Micro ITX architecture (17x19cm/ 6.69×7.48in) Package List: 1 x Gaming Motherboard Annotation: Manual measurement, please allow some errors. Please note that the new type and old type of this product will be sent randomly, and make sure you don’t mind before ordering. You need to turn on the toggle switch on the motherboard and flip it to the nvme side to boot normally. FAQ: Q: Does the product have temperature and speed regulation? A: The product does not come with temperature and speed control.
[For Intel LGA 1150 Slot] H81 M ATX motherboard supporting for Intel 4th generation for Core i3 i5 i7, for Xeon E3 V3 series, for Celeron G series and for Pentium G series processors (such as for Core i7 4790K i5 4690K i3 4160T, for Xeon E3 1280 v3, for Pentium G3260T, for Celeron G1830, etc).
[Dual Channel DDR3] Gaming motherboard, two 240 pin DDR3 SDRAM desktop memory slots, unbuffered, supports effective frequency 1066, 1333, 1600MHz, maximum capacity 16GB. 8 layer PCB sturdy material, not easy to bend, to ensure stable operation of each circuit.
[High Speed M.2 Interface] Computer motherboard for the upgraded version of the H81 M.2 motherboard, has high speed M.2 hard disk interface, with its own jumper cable, support for dual mode NVME with NGFF, you can freely choose the high and low, high speed PCIE hard disk switching and SATA2.0, 3.0 channel.

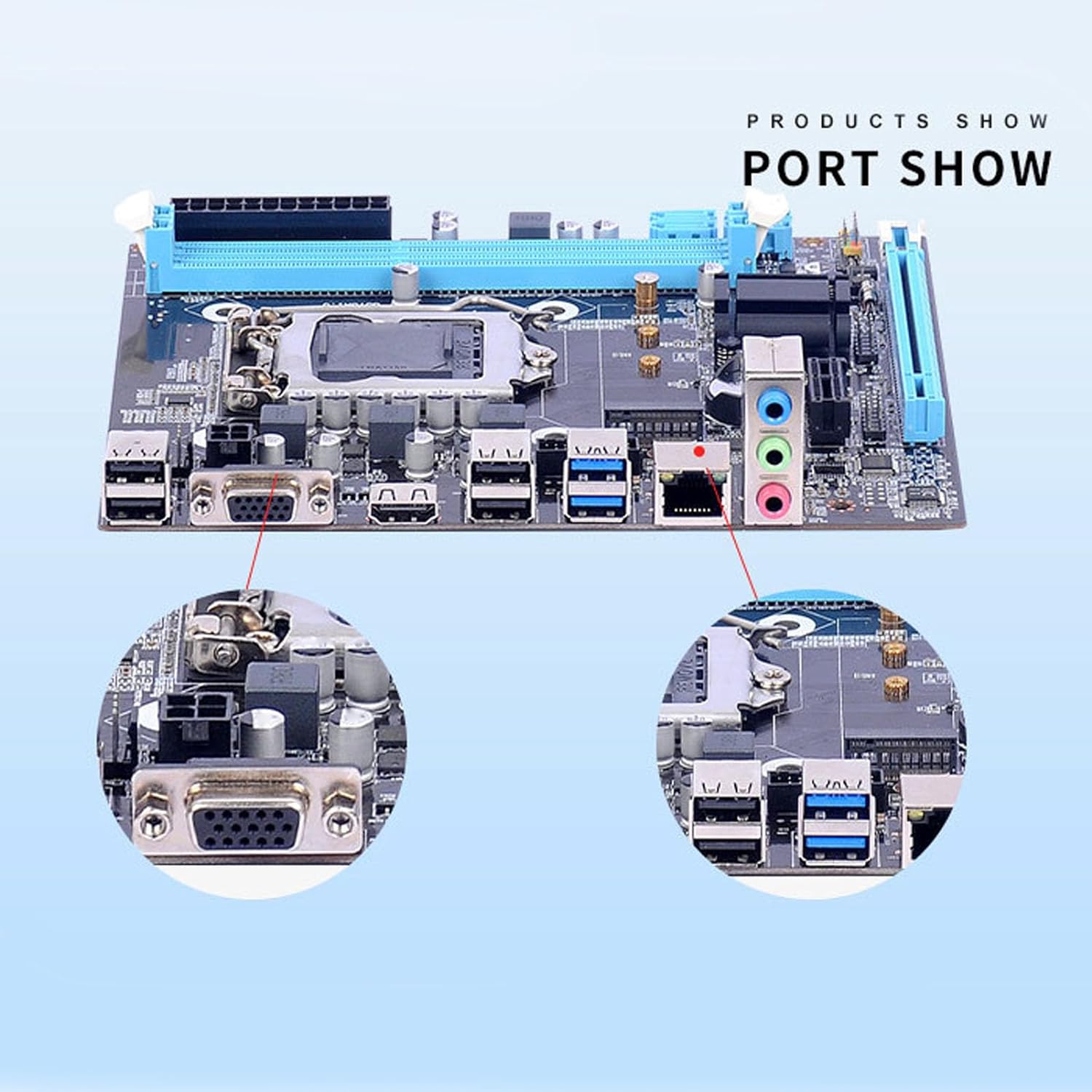

[I, O Interfaces] Desktop computer motherboard, provides a variety of I, O interfaces, including 4 USB 2.0 ports, 2 USB 3.0 ports, 1 VGA port, 1 HD Multimedia Interface compatible interface, 1 RJ45 port, 1 3 in 1 interface sound interface (line in, line out, microphone).
[Storage And Expansion Slots] The PC motherboard has 2 2.0 (3GB/s) ports and 1 3.0 (6GB/s) port allowing you to connect multiple storage devices. Expansion slots include 1 PCI Express x16 slot, 1 PCI Express x1 slot, and 1 M.2 slot supporting NVMe and NGFF interfaces.
